As commercial buildings, district heating, and industrial processes demand more reliable hot water, the energy saving volumetric heat exchanger stands out as a proven solution. It combines heat transfer with thermal storage, ensuring stable outlet temperatures across variable loads. Hotels, hospitals, shopping centers, heating stations, and production lines increasingly adopt this equipment.
How a Energy Saving Volumetric Heat Exchanger Solves Temperature Fluctuations
Traditional heat exchangers lack buffer capacity. In contrast, an energy saving volumetric heat exchanger integrates a large water tank. With this structure, this design absorbs sudden load changes. Even more, even when the primary side pressure or flow drops, the secondary side keeps constant hot water temperature. As a result, users no longer experience sudden cold shocks during peak demand. This feature improves comfort in showers and precision in industrial heating processes.
The large internal volume acts as a thermal flywheel. It stores energy during low demand. Then it releases stored heat during high demand. As a result, the system operates smoothly without frequent burner or boiler cycling. This behavior saves energy and extends equipment life.
Volumetric Heat Exchanger Factory‑Skid Integration Saves Field Installation Time

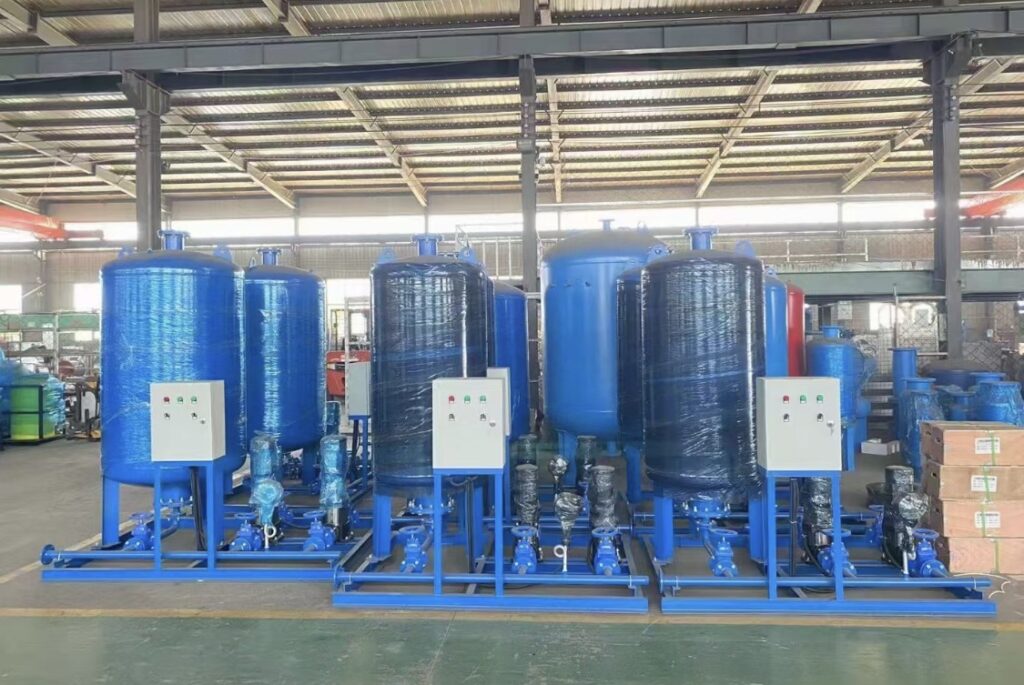

A energy saving volumetric heat exchanger comes as a pre‑assembled skid. The manufacturer mounts the tank, circulation pumps, valves, piping, and control panel on a single base. All components are wired and tested before delivery. Field crews only need to connect water inlets, outlets, and electrical supply. This approach reduces on‑site installation time by more than 70% compared to piecemeal assembly.
Skid integration also eliminates many field welds and quality uncertainties. The factory performs pressure tests and leak checks. Users receive a ready‑to‑run unit. Consequently, project schedules shorten, and labor costs drop. This advantage matters greatly for retrofits in crowded mechanical rooms.
Volumetric Heat Exchanger Flexible Sizing and Customization Options
Manufacturers offer three standard size ranges. Small units suit office buildings and small hotels. Medium units handle hospitals and large hotels. Large units serve district heating stations and industrial plants. Each energy saving volumetric heat exchanger can use carbon steel for clean water or stainless steel for corrosive fluids/severe service.
Users can select pump brands like Grundfos, Wilo, or Nanfang. Control options range from basic thermostats to PLC‑based smart regulators. The control system can integrate with building automation networks (BACnet, Modbus). Customization also covers nozzle orientation, skid footprint, and insulation thickness. This flexibility lets engineers match the unit exactly to site conditions.
Energy Saving Volumetric Heat Exchanger Quality and Long‑Term Reliability
Every energy-saving unit firstly strictly complies with pressure vessel codes including GB/T 150 and TSG 21. Meanwhile, all weld seams receive 100% non-destructive testing via radiography or ultrasonic inspection. Furthermore, each product undergoes a hydrostatic test at 1.5 times the design pressure, then followed by an air tightness test to ensure zero leakage. Ultimately, rigorous quality procedures enable the equipment to withstand long-term thermal cycling with stable, failure-free operation.
Anti‑corrosion treatment extends service life. Carbon steel tanks receive internal coating or epoxy lining. Stainless steel tanks resist pitting in aggressive water. Regular maintenance is simple because the skid design leaves clear access to valves and instruments. With proper care, a energy saving volumetric heat exchanger operates efficiently for over two decades.
Under the pressure of carbon reduction policies, engineers seek equipment with high efficiency and low lifecycle cost. Fortunately, the energy-saving volumetric heat exchanger meets both goals. Moreover, it delivers steady hot water, adapts to load swings, installs quickly, and lasts long. In particular, district heating, hospitality, healthcare, and manufacturing can all greatly benefit.
Contact Tianmiao’s engineering team for a custom‑designed energy saving volumetric heat exchanger that fits your specific heating demand.
