Across chemical, pharmaceutical, food and textile industries, steam acts as a core production driver. It supports process reactions, material heating and regular equipment sterilization. Nevertheless, actual operation often sees sudden load shifts between boiler output and on-site steam use. Such fluctuations trigger unstable pressure, lower energy efficiency and unexpected downtime. They also cause inconsistent quality and hinder steady manufacturing progress. Therefore, to resolve these common operational pain points, Tianmiao develops high-performance steam storage tanks. Furthermore， engineered as key pressure vessels linking boilers and end devices, these products feature three core strengths. Stable pressure with energy storage, effective steam-water separation and flexible buffering work together. Eventually, businesses gain a dependable steam source to maintain continuous, stable production all year round.
Scientifically Engineered Structure: Adaptable to Diverse Industrial Environments

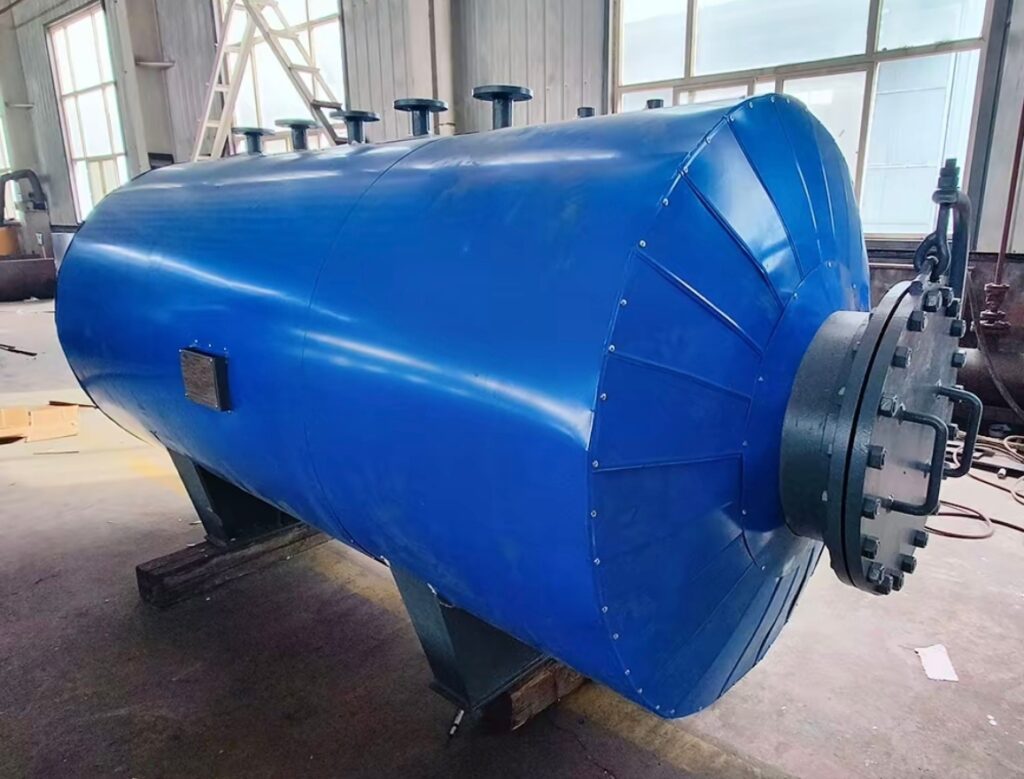

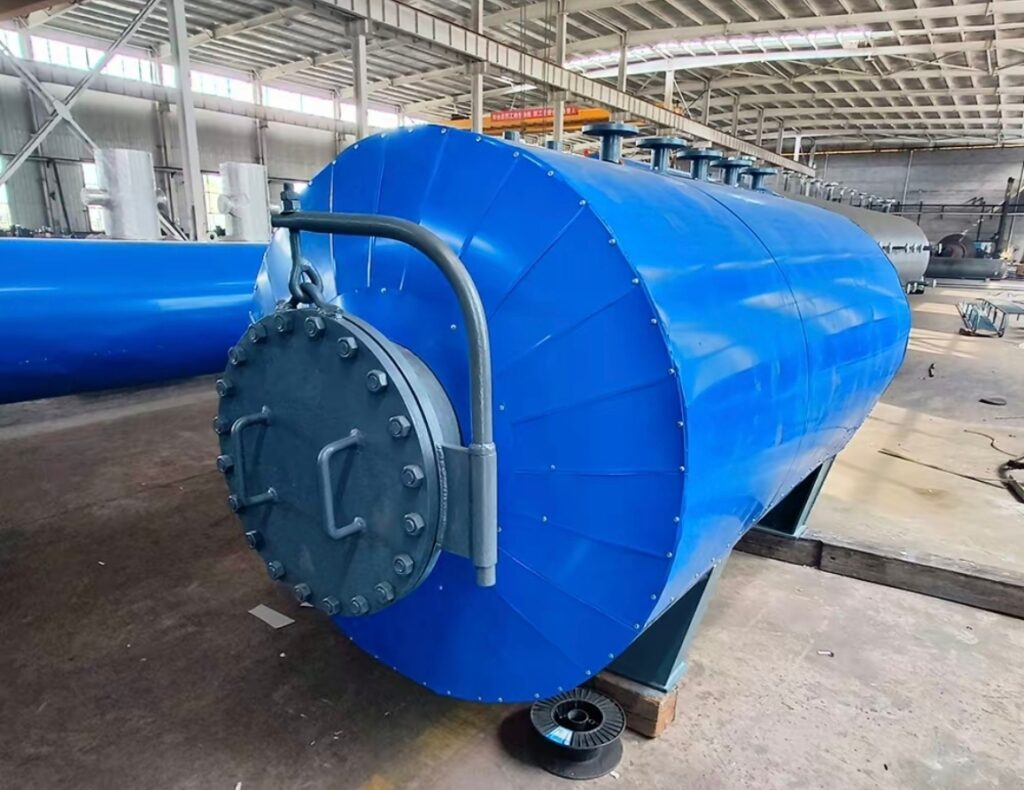

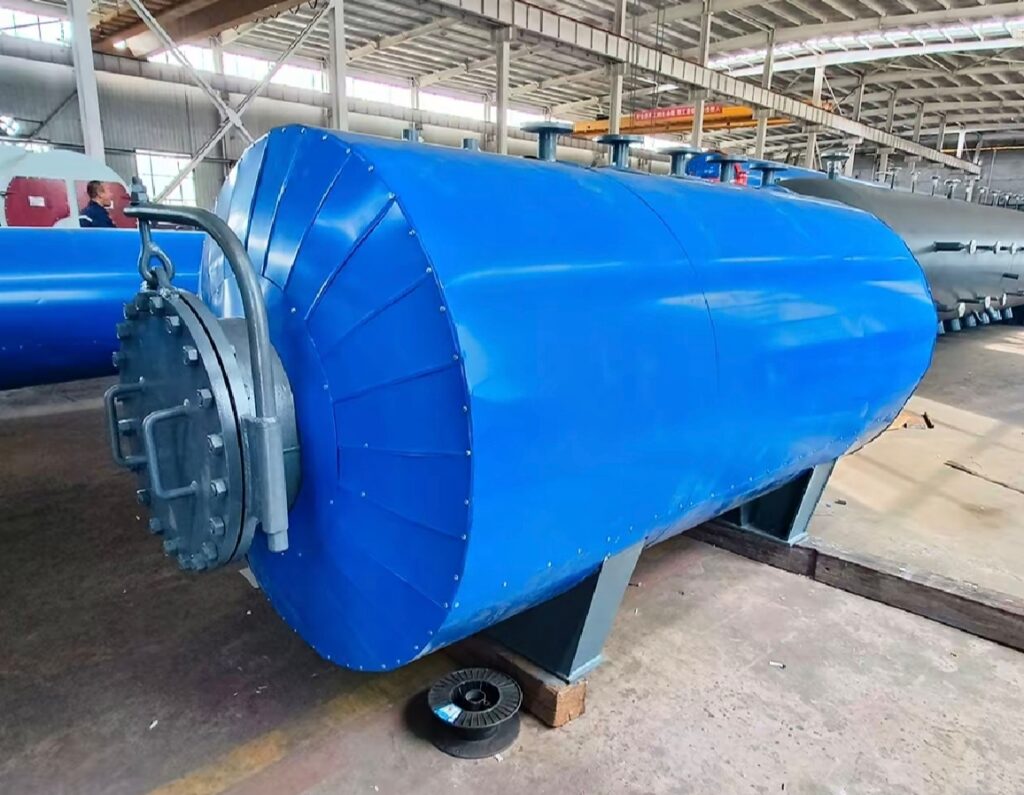

Our steam storage tanks adopt horizontal cylinder and saddle support structures. Users install them directly on floors to simplify on-site layout work. We follow GB150 and TSG 21 standards in design and production strictly. Tank volume ranges from 1 cubic meter to 100 cubic meters fully. Design pressure covers 0.6 MPa to 4.0 MPa for diverse needs. Working temperature adapts between minus 20℃ and 300℃ widely. We equip 50 to 100mm insulation with rock wool or polyurethane. This structure cuts heat loss and keeps surface temperature below 50℃. It effectively lifts the overall energy efficiency of steam supply systems.
Comprehensive Safety Accessories: Ensuring Safe and Reliable Operation
In terms of safety configuration, each unit is fully equipped with essential accessories, including spring-loaded full-lift safety valves, Class 1.6 precision seismic-resistant pressure gauges, thermometers, blow-down valves, and standard inlet/outlet flanges, guaranteeing safe and reliable operation. Concurrently, through fluid dynamics optimization of the internal structure, we have achieved highly efficient steam-water separation. This capability ensures that downstream steam-consuming equipment receives a continuous supply of dry, stable, and high-quality saturated steam.
Steam Storage Tanks: Premium Materials and Precision Manufacturing Ensure Unwavering Quality
We adopt Q345R steel for steam storage tank main bodies. This dedicated pressure vessel steel owns fine high-temperature performance. It features reliable weldability and stable strength under 300℃. It prevents tank deformation and damage during long-term operation. We carry out strict incoming checks for all raw steel materials. We test chemical components and mechanical traits of every batch. We make all steel plates fully meet the GB/T 713 standard requirements.
We use CNC plate rollers for precise tank shell forming. We keep weld straightness within 1mm per meter strictly. We run full RT or UT detection on all butt welds in production. We make welds meet Grade I and II standards of NB/T 47013.2. We finish all welding work before further heat treatment steps. We conduct overall stress relief for the whole tank vessel. We remove residual stress left by welding processes thoroughly. We boost equipment fatigue resistance with this professional step. We also effectively extend the service life of the finished tanks.
The Core Operating Principle of Steam Storage Tanks: Achieving Efficient Steam Supply Through “Peak Shaving and Valley Filling”
Within industrial steam supply systems, Tianmiao steam storage tanks play a pivotal role in truly executing the strategy of “peak shaving and valley filling,” thereby comprehensively improving both steam supply stability and energy utilization efficiency.
In terms of buffering and pressure stabilization: When the instantaneous steam demand from downstream equipment surges, the storage tank rapidly releases its stored saturated steam to promptly bridge the supply gap left by the boiler, thereby effectively stabilizing the pressure within the pipeline network. Conversely, when steam demand subsides, the surplus steam is automatically stored within the tank, preventing the boiler from undergoing frequent start-stop cycles—a measure that ultimately reduces energy consumption and minimizes equipment wear and tear.
Boiler saturated steam often carries tiny water droplets inside it. Steam slows down greatly after entering the tank expansion chamber. Gravity makes suspended water droplets sink and separate from steam. We drain accumulated condensate regularly with the bottom drain valve. We supply dry pure steam to protect downstream equipment steadily. This step cuts corrosion risks and avoids unnecessary efficiency loss. We recycle secondary steam from high‑temperature condensate flash. We feed this recycled steam directly into tanks for repeated use. We reduce energy waste and raise overall steam system thermal efficiency.
International Project Case Study: “One-Active, One-Standby” Solution for a Chemical Plant in Florida, USA
Reliable performance makes Tianmiao steam storage tanks popular worldwide. Furthermore, a full customized solution supported one large U.S. chemical plant lately. Unstable multi-level steam supply once troubled the client’s production lines greatly. Hence, dedicated tank models matched their high, medium and low pressure demands precisely. Meanwhile, every working unit adopted a practical one-active and one-standby structure. Identical backup tanks come with each main device for emergency switching scenarios. Operators can activate standby units during maintenance or unexpected equipment faults. Such thoughtful design keeps the whole steam system running stably all year round. Solid production stability and stronger anti-fluctuation capability followed this upgrade. Ultimately, the client offered high praise for our professional and effective overall solution.
Currently, Tianmiao steam storage tanks are widely utilized across diverse sectors, including petrochemicals, pharmaceuticals, food processing, textile printing and dyeing, and bio-fermentation. For instance, after installing a 30m³ steam storage tank, a pharmaceutical enterprise observed a reduction in pressure fluctuations during its sterilization process—narrowing the range from ±0.2 MPa to ±0.05 MPa—while simultaneously boosting their product pass rate by 2.3%. This delivered tangible and direct operational benefits to the enterprise.
Customization Services and Comprehensive Quality Assurance for Steam Storage Tanks
Tianmiao holds the Class A2 certification for pressure vessel manufacturing, enabling us to provide end-to-end customization services—from initial design through to final delivery—tailored precisely to our clients’ actual requirements.
We customize tank structures actively: adjust shell length, nozzle direction and support types to fit site conditions and meet diverse installation needs. We precisely tailor working pressure, temperature and volume to match your actual process requirements. For harsh working scenarios, we let you choose 304 or 316L stainless steel to boost corrosion resistance. Besides, we supply optional accessories like liquid level gauges, steam traps, remote pressure transmitters and IoT modules, to support smart operation of the whole equipment.
Before delivery, we test every steam storage tank with hydraulic pressure at 1.5 times its design pressure for 30 minutes. We check closely to avoid leaks and structural deformation. Meanwhile, we perform full MT or PT flaw detection on all key welds to remove hidden surface defects. Besides, we provide complete quality documents, including material certificates, welding records, inspection reports and finished drawings. These files help users smoothly finish special equipment acceptance and registration procedures.
Tianmiao Chemical Machinery focuses on professional pressure vessel manufacturing, with premium steam storage tanks as our core product. We deliver stable, efficient and safe supporting equipment for industrial steam systems. We offer full one-stop technical services including model selection calculation, engineering design and on-site installation guidance for new projects and existing steam system upgrades. Reach out to our engineering team anytime for detailed plans and professional technical support. We customize efficient, tailored steam storage solutions to fully match your actual needs.
