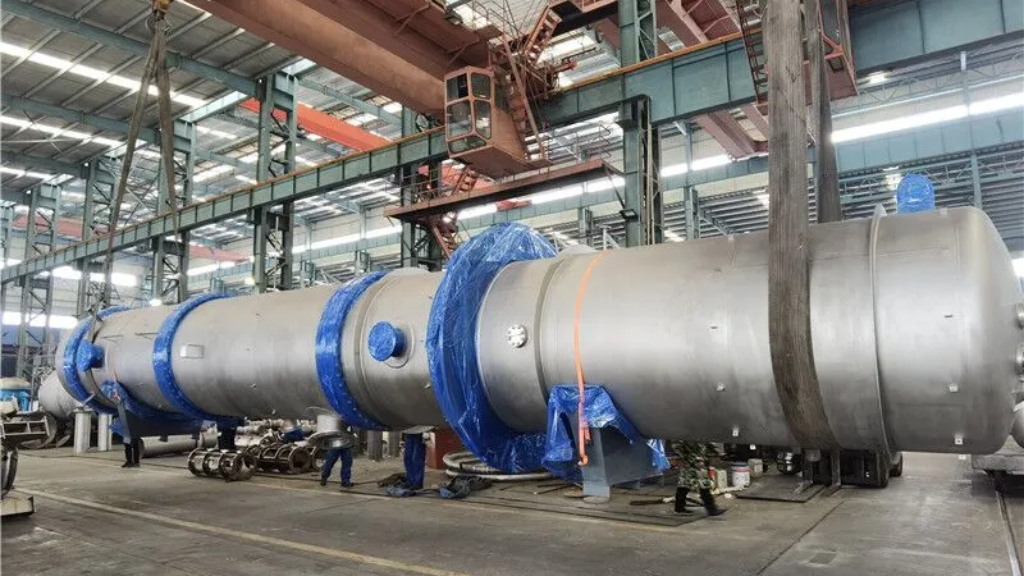

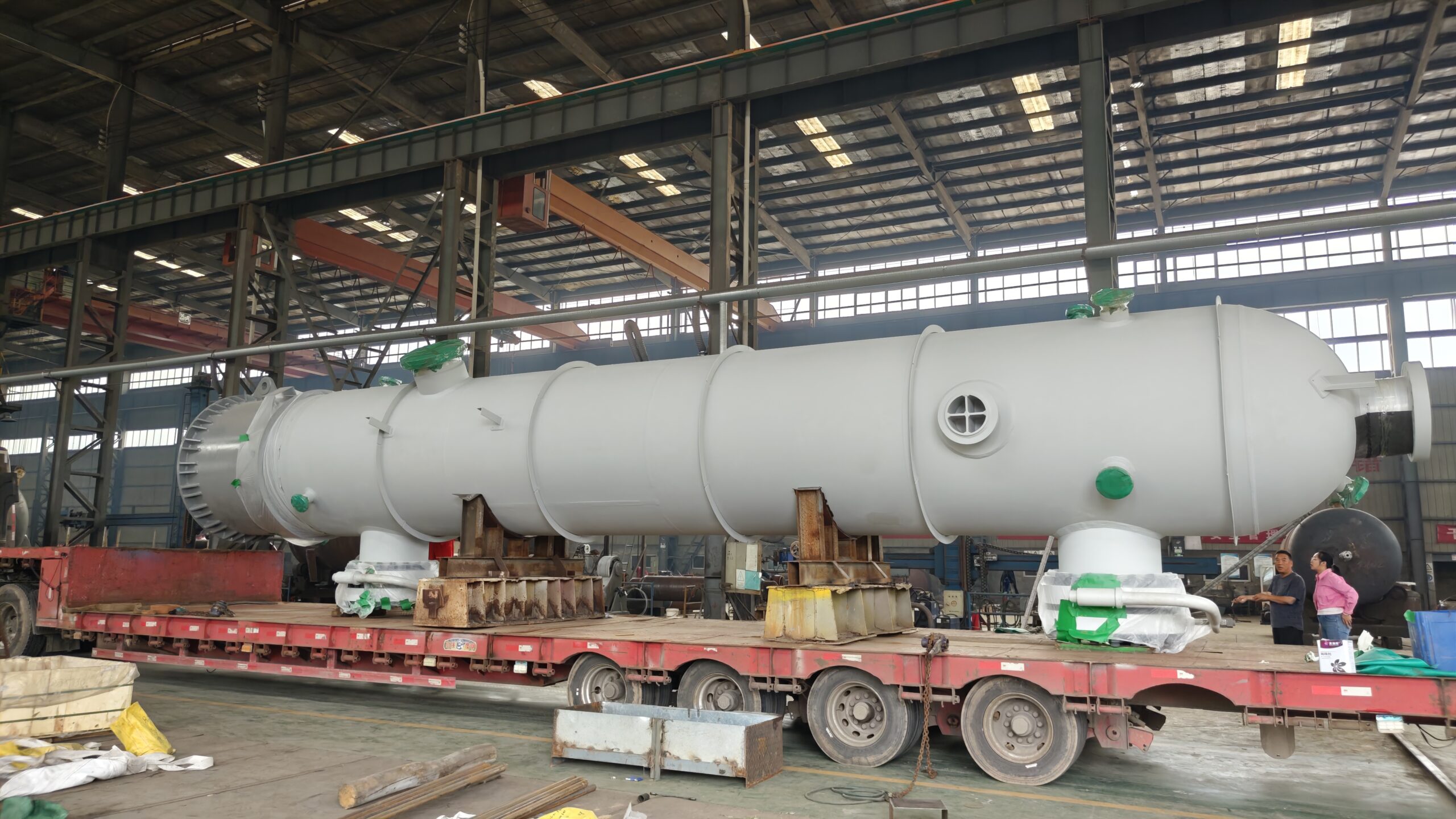

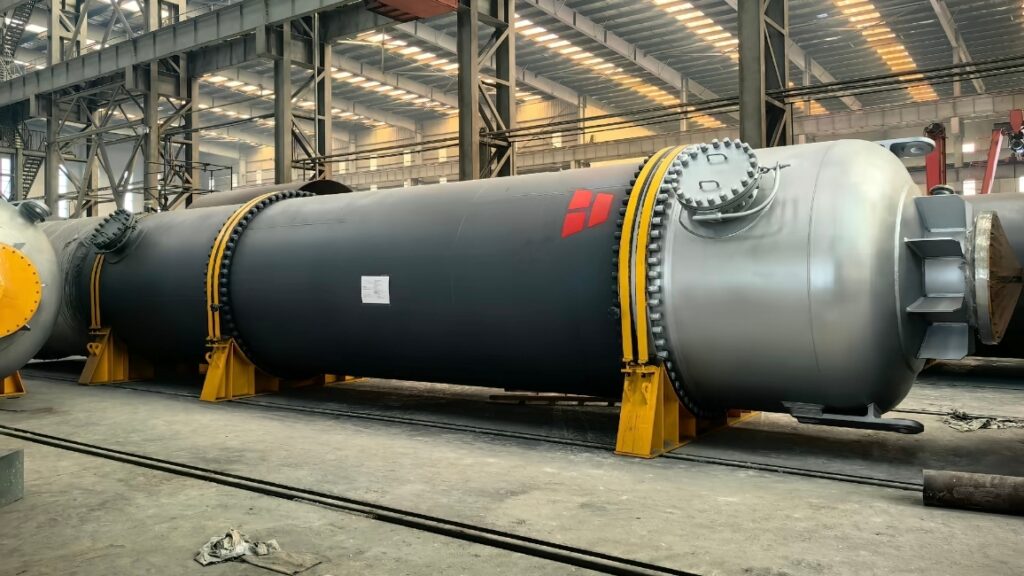

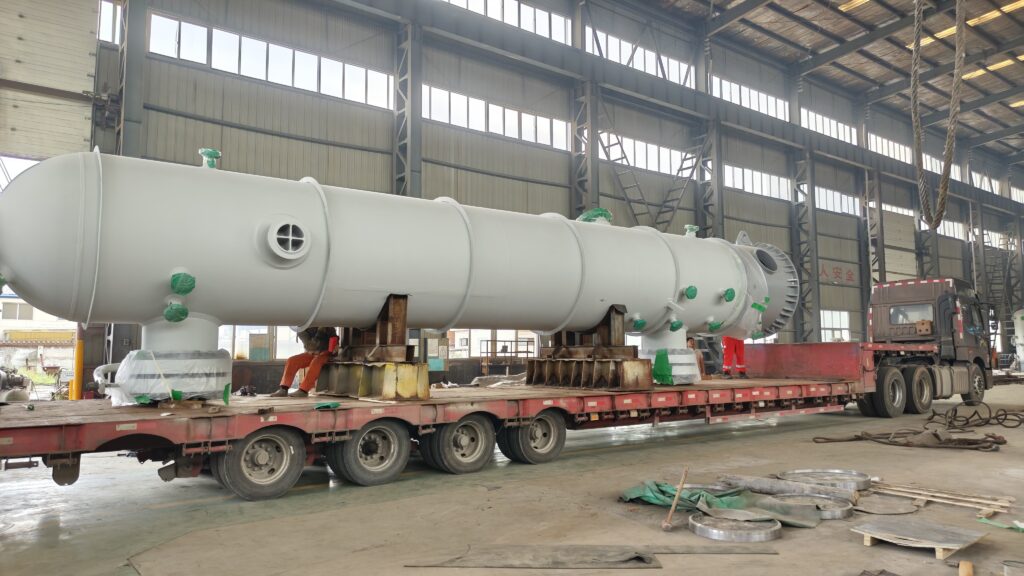

Tianmiao Chemical Machinery recently completed factory testing on a custom TEG gas dehydration contactor. This unit will remove water vapor from natural gas streams. It uses triethylene glycol (TEG) as the absorbent. The contactor passed all quality checks and is now ready for shipment.
The TEG gas dehydration contactor serves a critical function. Wet natural gas enters the bottom. Dry gas exits the top. This process prevents hydrate formation and pipeline corrosion. Tianmiao built this unit to meet strict industry standards.
Key Design Features of the TEG Gas Dehydration Contactor
Robust Construction for High-Pressure Service
The TEG gas dehydration contactor shell uses Q345R pressure vessel steel. Wall thickness matches design pressure requirements. The internal trays and downcomers are stainless steel. This material resists sour gas corrosion. All welds underwent 100% NDT inspection.
Optimized Tray Configuration for Mass Transfer
Inside the gas dehydration contactor, technicians installed multiple bubble-cap trays. These trays increase gas-liquid contact time. The design ensures efficient water absorption by TEG. A demister pad at the top captures any liquid carryover.
Customized Nozzle Arrangement
The contactor features custom nozzle locations. Inlet, outlet, and instrumentation ports match the client’s piping layout. Flanges follow ASME B16.5 standards. This customization simplifies field installation.
TEG Gas Dehydration Contactor Manufacturing and Quality Control Process
Material Verification Before Fabrication
Every steel plate for the contactor came with a mill certificate. Tianmiao performed positive material identification (PMI) on all alloys. Rejects were returned to the supplier.
Precision Rolling and Welding
Technicians rolled the shell plates using CNC equipment. Longitudinal and girth welds used submerged arc welding. Welders followed approved procedures. After welding, each seam received ultrasonic testing and radiographic inspection.
Hydrostatic Testing and Documentation
The completed gas dehydration contactor underwent a hydrostatic test at 1.5× design pressure. It held pressure for 30 minutes with zero leakage. A final pneumatic test checked all gasketed joints. The unit now has full traceable records.
TEG Gas Dehydration Contactor Applications and Customer Value
Natural Gas Dehydration in Upstream Operations
A contactor is essential for gas processing plants. It lowers the water dew point to pipeline specifications. Dry gas prevents freezing in winter conditions. It also reduces corrosion in downstream equipment.
Long Service Life with Minimal Maintenance
The gas dehydration contactor requires little routine care. Stainless steel internals resist chemical attack. Regular glycol sampling and filter changes keep the system clean. Tianmiao designed easy-access manways for internal inspection.
Custom Solutions for Global Clients
Tianmiao builds TEG gas dehydration contactors to any size. We offer trayed or packed designs. Clients can choose carbon steel, stainless, or duplex materials. Our team provides full engineering support from design to startup.
Conclusion
Tianmiao Chemical Machinery is dedicated to providing reliable TEG gas dehydration contact towers for natural gas dehydration processes. Please contact us for a customized quote or a technical data sheet.
