Tianmiao Chemical Machinery Company recently successfully commissioned six high-precision vulcanizer at a composite materials manufacturing hub in Southern China. This project primarily serves sectors such as aerospace, automotive manufacturing, and wind power generation. These advanced units are currently being utilized to cure high-performance carbon fiber and epoxy resin composite components. As a result, the client has not only significantly shortened production cycles but also substantially enhanced product batch consistency.
High-Precision Vulcanizer—Providing Precision Curing Solutions for Modern Composite Materials
Exceptional Temperature and Pressure Control Capabilities
Each high-precision vulcanizer guarantees temperature uniformity within ±1.5°C across its entire working zone. Equipped with digital PID controllers, the units perform real-time adjustments to heating and cooling processes, thereby ensuring that composite components remain free from thermal gradient effects or internal stresses during curing. Furthermore, throughout the entire isothermal and isobaric (holding) phase, internal pressure fluctuations are strictly controlled within a range of ±0.02 MPa.

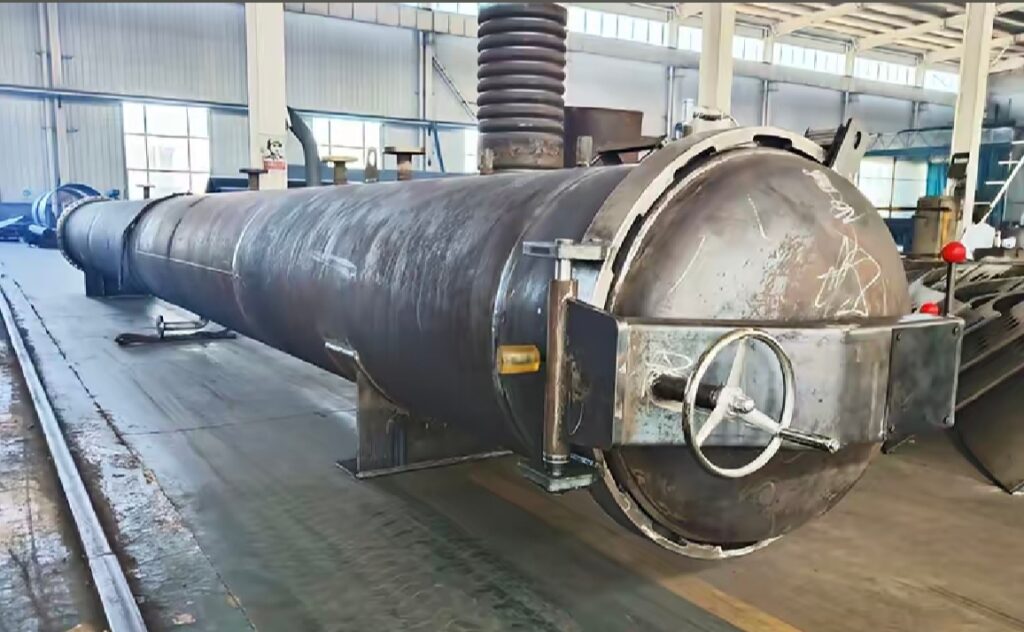

Rapid-Opening Safety Doors
The units feature a pneumatic rapid-opening door design, which reduces material loading and unloading times by 40%. A dual mechanical interlock system effectively prevents accidental opening while the vessel is under pressure. Additionally, a dedicated pressure-retention interlock mechanism ensures that the door remains unsealed until the internal pressure reaches a specific preset value. This user-centric design eliminates the risk of operational errors and significantly boosts the equipment’s daily production throughput.
Corrosion-Resistant Liner Design
During the curing process, composite resins often release corrosive volatile substances. To address this, the inner liners and sealing components of these high-precision vulcanizer are constructed from high-grade 316L stainless steel. Concurrently, all internal surfaces are treated with a specialized protective coating to resist chemical corrosion. Thanks to these protective measures, the equipment maintains its original precision and internal cleanliness throughout an operational lifespan exceeding 15 years.
Tianmiao High-Precision Vulcanizer—Tailored for the Process Flows of South China
Flexible Dimensions and Configuration Options

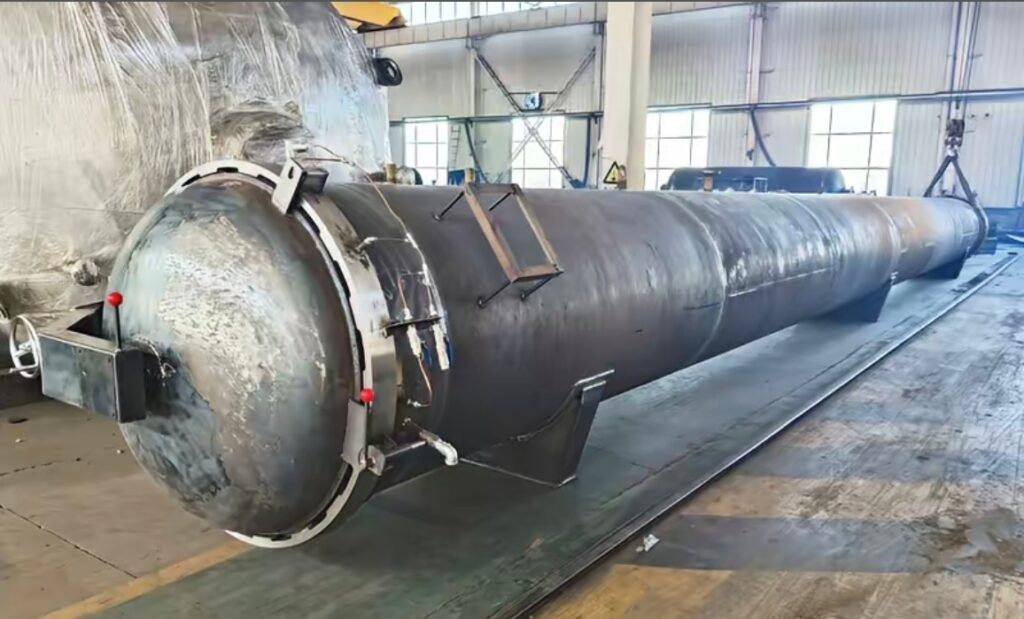

The six high-precision vulcanizer commissioned for this project feature diameters ranging from 1.8 to 2.5 meters, with vessel lengths extending up to 6 meters. Each unit can be equipped with customized tooling fixtures based on client specifications, allowing them to accommodate molds of various shapes. Furthermore, clients can flexibly select from a range of heating systems—including electric, steam, or thermal oil heating—to best suit their specific processing requirements. This highly flexible configuration scheme ensures a perfect match for the diverse curing process profiles required by various resin materials.
Integrated Cooling and Vacuum Systems
For advanced composite materials, the post-curing cooling process demands rigorous control. Consequently, each vessel features a built-in, integrated forced-air circulation cooling system. Prior to pressurization, a vacuum pump evacuates any residual air trapped within the vessel. Thanks to this feature, the manufactured parts achieve “zero-void” perfection and exhibit enhanced structural strength.
Digital Process Recipe Management
Operators can store dozens of curing process recipes directly within the PLC (Programmable Logic Controller) memory. Each recipe encompasses critical parameters such as heating rates, dwell times, pressure staging, and cooling curves. Additionally, the system generates detailed records for every curing cycle, complete with precise time-stamped data. This capability enables manufacturers to achieve comprehensive production process traceability, thereby providing a robust foundation for quality audits.
Why Do These High-Precision Vulcanizer Stand Out in Production?
Energy-Efficient and Highly Productive—Minimizing Waste
A thick layer of ceramic fiber insulation minimizes heat loss. The energy consumption of thishigh-precision vulcanizer is 22% lower than that of traditional models. Faster heating and cooling cycles further reduce energy costs. Meanwhile, precise process control effectively lowers the scrap rate caused by under-curing or over-curing.
Easy Maintenance and Stable Operation
Featuring sealed bearings and self-lubricating door hinges, the equipment requires minimal daily maintenance. The heating elements utilize a modular design, allowing for replacement without the need to drain the vessel. Thanks to these features, the equipment availability (uptime) of this vulcanizer series exceeds 98%. The interval for scheduled maintenance extends up to 5,000 operating hours.
Guaranteed by Safety Certifications
All six high-precision vulcanizer fully comply with various standards and regulations, including GB150, ASME, and PED. A third-party inspection agency witnessed the entire hydrostatic pressure test, which was conducted at 1.5 times the design pressure. Furthermore, every unit passed a helium leak test, ensuring the vessel’s exceptional airtightness. Consequently, the equipment received by the client not only possesses complete certification credentials but is also ready to be put directly into production.
High-Precision Vulcanizer Project Receives Comprehensive Support, Ensuring a Smooth Launch
Equipment Installation and System Integration
Tianmiao’s team of engineers visited the site to provide full guidance on the precise positioning of the equipment and the connection of all utility pipelines. They precisely aligned each vulcanizer with the factory’s existing conveyor lines. Additionally, they seamlessly integrated the equipment’s control systems into the factory’s MES (Manufacturing Execution System) network. This critical step enables the factory to achieve real-time monitoring and management of the production process.
Professional Operator Training
We provided two weeks of professional hands-on training for 12 technical personnel. The trainees gained a systematic mastery of process recipe programming, emergency response procedures, and routine equipment maintenance skills. After passing the assessments and obtaining their certifications, they are now capable of independently managing full production shifts. Thanks to this, the facility successfully achieved its projected production output targets within just one month of the equipment going live.
24/7 Remote Assistance
Our service center provides round-the-clock remote assistance, including video-guided troubleshooting support as well as rapid dispatch and delivery services for spare parts. Customers may also request annual calibration and preventive maintenance services. Consequently, this fleet of high-precision vulcanizers operates reliably without the need for lengthy downtime.
High-Precision Vulcanizer Project Solidifies Tianmiao’s Position in Composite Equipment Supply
This successful project fully demonstrates Tianmiao’s exceptional capabilities in high-end composite curing technology. Currently, these six high-precision vulcanizers actively produce battery enclosures for electric vehicles and interior components for aircraft. Local composite manufacturers have visited the project site for inspections, and several of these companies have subsequently placed follow-up orders.
Tianmiao high-precision vulcanizer will continue to deepen its commitment to innovation within the field of pressure vessel technology. We are currently dedicated to developing larger-scale equipment models, and we will integrate features such as active cooling systems and AI-driven process recipe optimization capabilities. Once we realize these advancements, customers will benefit from even higher levels of production efficiency and quality control. Our unwavering pursuit of excellence and steadfast commitment to precision curing equipment remain constant.
Tianmiao delivered six high-precision vulcanizers to a composite materials project in South China. This delivery marks another significant milestone in our corporate journey. These units feature unparalleled temperature uniformity, exceptional safety and reliability, and comprehensive digital traceability. They empower composite manufacturers to achieve higher finished product yields and lower energy consumption. If you are interested in installing and applying similar equipment, please contact our engineering and technical team for a consultation.
