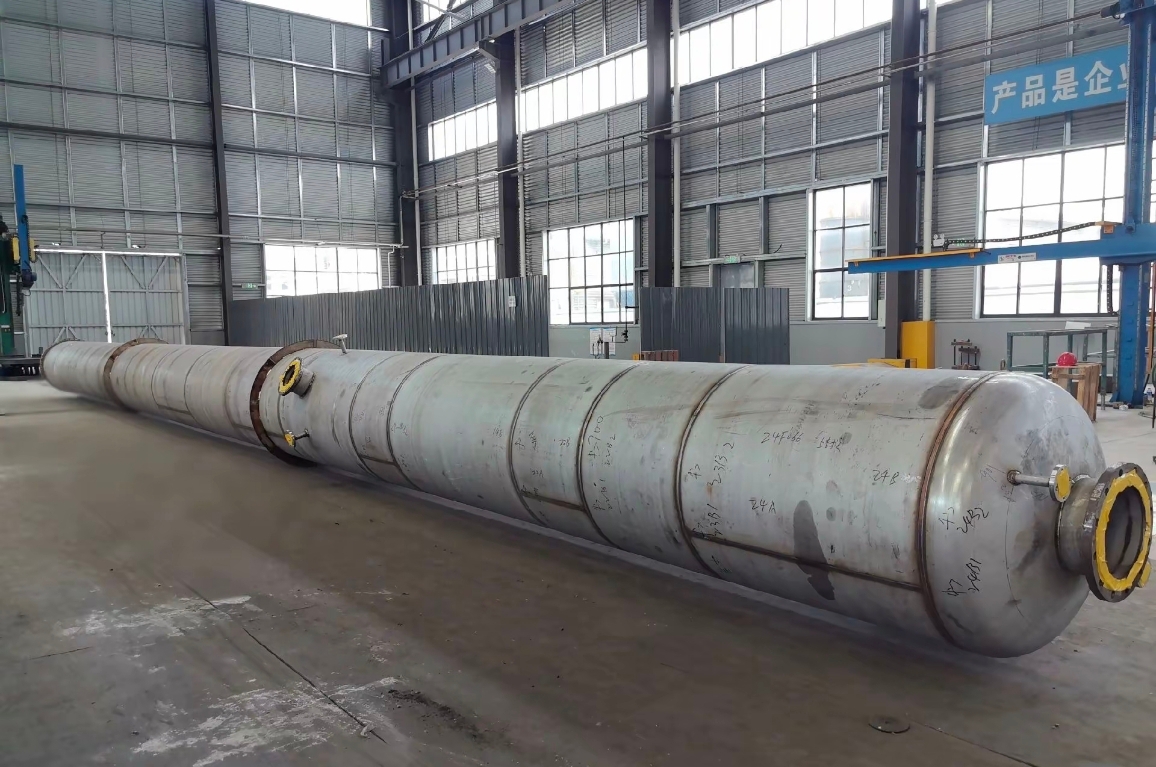

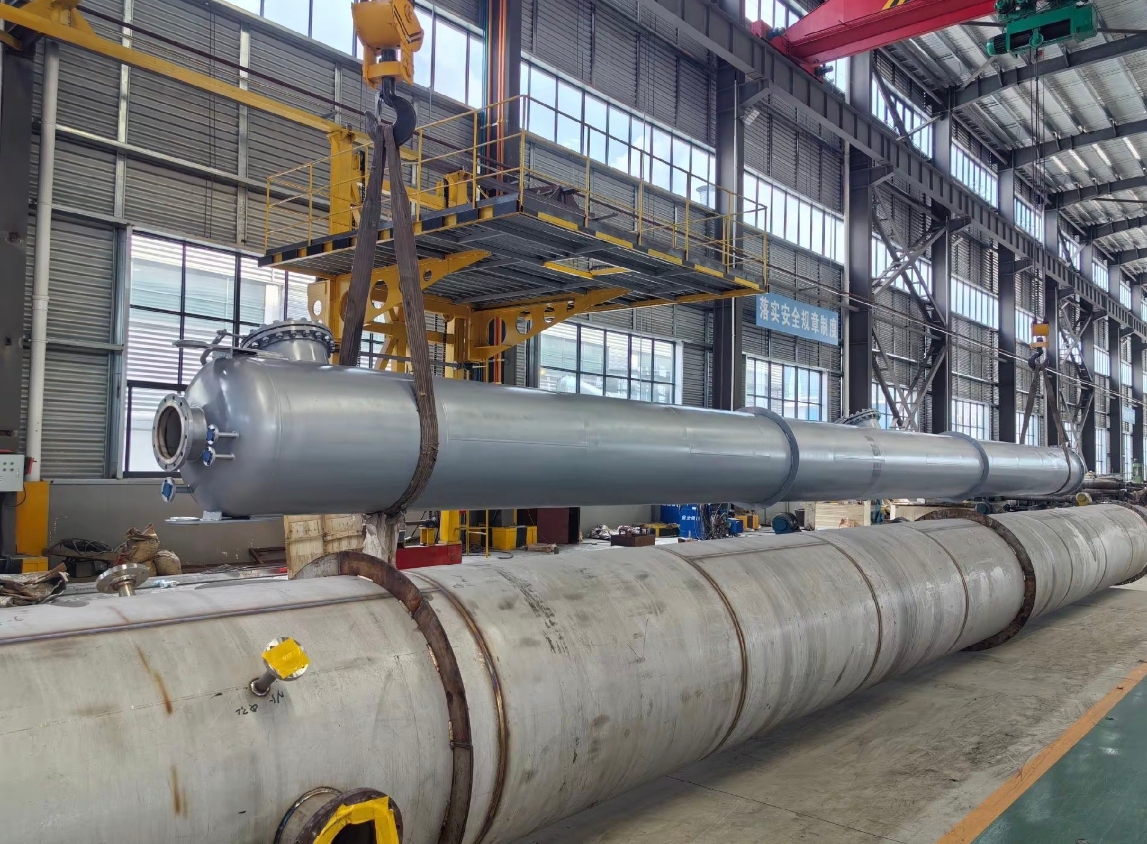

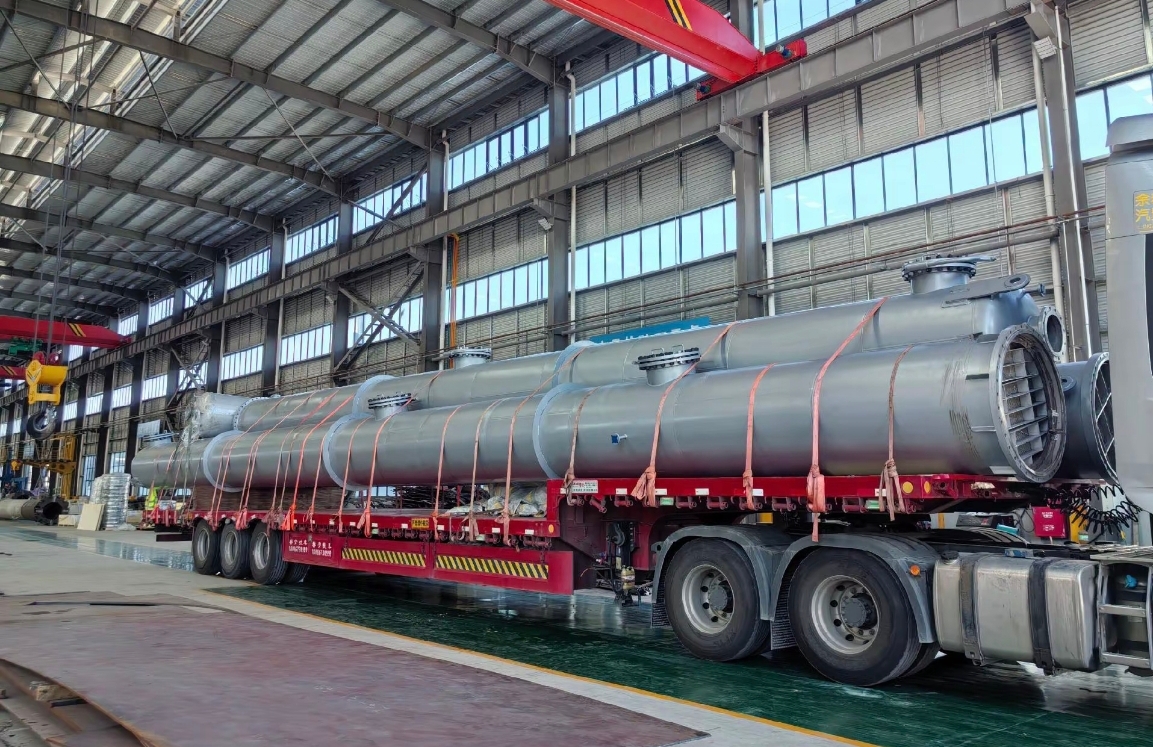

Distillation Column
Tianmiao Distillation Towers: Delivering efficient and precise separation and purification. Optimized internal components ensure superior mass transfer, while rigorous leak-free testing guarantees flawless purity. Featuring a modular design for flexible assembly, tower diameters, packing materials, and construction materials are fully customizable to meet your specific requirements.
Get a quote now for your personalized plan
Tianmiao Chemical Machinery has successfully developed a series of high-efficiency distillation columns, widely applied across sectors such as petrochemicals, fine chemicals, coal chemicals, pharmaceuticals, and environmental protection. These columns facilitate the separation of mixtures via distillation, solvent recovery, product purification, and tail gas treatment. Designed to balance thermodynamic efficiency with structural integrity, these units ensure stable mass and heat transfer during both continuous and batch operations, thereby significantly enhancing product purity and yield.
As Class II/III pressure vessels, these units are equipped with multiple layers of safety protection: the column top features a parallel arrangement of a spring-loaded safety valve and a rupture disc, while the column bottom is fitted with an explosion-proof membrane; flange connections utilize specialized gaskets to prevent any leakage. Segmented joints within the column body employ double-cone or octagonal ring gaskets, making them suitable for high-pressure and high-vacuum operations. Furthermore, the quick-opening manholes are fitted with a pressure interlocking mechanism, preventing them from being opened until the internal pressure has been fully relieved, thereby ensuring operational safety.
Holding an A2-level Special Equipment Manufacturing License, Tianmiao maintains rigorous control over production quality: incoming raw materials undergo batch-by-batch re-inspection; column sections are precision-formed using CNC technology; and all longitudinal and circumferential welds undergo 100% inspection to meet Class I standards. Following welding, the units undergo stress-relieving heat treatment. Prior to shipment, each unit must successfully pass a hydrostatic test (conducted at 1.5 times the design pressure) and an airtightness test; columns intended for vacuum operation undergo additional testing to verify leakage rates. All relevant inspection documentation is provided with the shipment to facilitate acceptance and regulatory filing requirements.
Tianmiao offers non-standard customization services tailored to client process packages, allowing for adjustments to column diameter, height, tray type (sieve, valve, or bubble cap), or packing specifications (structured or random packing). For highly corrosive or high-purity media, materials such as duplex stainless steel, titanium, or glass-lined steel are available options; for heat-sensitive materials, segmented insulation or jacketed heating systems can be incorporated. Additionally, we provide on-site installation guidance, internal component commissioning, operational training, and long-term maintenance and support services. Our after-sales team operates on a 24/7 basis, offering remote diagnostics and emergency response services to ensure the safe and efficient operation of the equipment throughout its entire lifecycle.
With its rigorous hydraulic design, precision manufacturing processes, stringent inspection protocols, and flexible customization capabilities, Tianmiao’s distillation columns provide robust equipment support for chemical separation processes. Whether for new construction projects or the retrofitting of existing columns, Tianmiao delivers comprehensive, one-stop distillation solutions that comply with GB and ASME standards, ensuring both safety compliance and superior performance. Choose Tianmiao—and choose a lasting guarantee for high-purity separation.
Distillation Column Parameter Table
Parameter Category | Specific Parameters |
Shell Material | S304 / S316L / Q345R / Duplex Steel |
Internal Structure | Tray / Pall Ring / Raschig Ring / Structured Packing |
Process Medium | Organic solvent / Alcohol / Petrochemical mixture |
Head Type | Elliptical Head / Dish Head |
Flange Standard | HG / GB / ASME B16.5 |
Design Code | GB150 / ASME BPVC Sec.VIII |
Pressure Class | PN10 / PN16 / Class150 / Class300 |
Heat Exchange Mode | External heating / Vacuum distillation |
Working Condition | Normal pressure / Negative pressure / Micro-positive pressure |
Anti-corrosion Treatment | Pickling passivation / Coating |
Inspection Standard | NDT / Hydrostatic test / Air tightness test |
