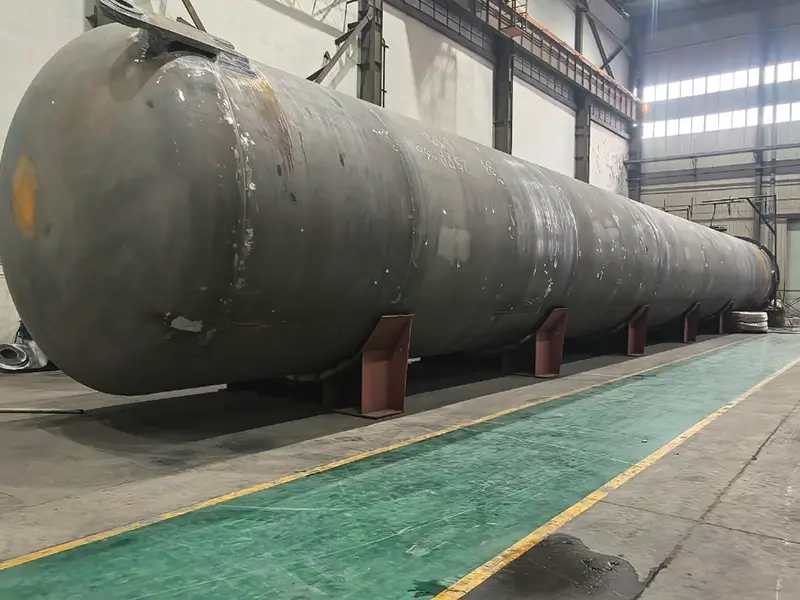

Cryogenic liquid helium storage tank
Tianmiao helium storage tanks ensure stable storage and transmission, providing worry-free helium storage. Made of ultra-low temperature corrosion-resistant materials, with strict vacuum insulation control, ensuring a tight seal and zero leakage. Modular integration allows for efficient installation; capacity, pressure, and structure can be customized to meet specific needs.
Get a quote now for your personalized plan
Tianmiao Chemical Machinery has been deeply involved in the cryogenic storage tank field for ten years, launching an ultra-large liquid helium storage tank with a diameter of 4.5 meters and a length of 10 meters. This tank can stably maintain an extremely low temperature environment of -269℃ (4.2K), providing high-purity liquid helium storage solutions for applications such as aerospace propulsion, scientific research, semiconductor manufacturing, and medical imaging.
The equipment adopts a double-layer vacuum insulation + multi-layer composite insulation structure, achieving a measured heat loss rate as low as 0.03W/L, reaching an industry-leading level. The tank can store liquid helium with a purity ≥99.9999% for extended periods, with a stable operating pressure within the 0.1–0.5MPa slightly positive pressure range, balancing safety and media stability.
As a Class III pressure vessel, the product has obtained both ASME and GB certifications. Key welds undergo 100% radiographic inspection, and the entire system is leak-tested using helium mass spectrometry to ensure zero leakage under extreme operating conditions. An intelligent monitoring system collects temperature and pressure data in real time, supporting remote diagnostics and anomaly warnings.
Tianmiao possesses special equipment manufacturing qualifications and implements standardized management throughout the entire process, from raw material re-inspection to finished product testing. It provides customized design, installation guidance, and operation and maintenance support, offering reliable integrated solutions for cutting-edge cryogenic equipment.
From the procurement of raw materials, Tianmiao strictly controls quality, re-inspecting each batch to ensure it meets design requirements. During production, standardized manufacturing processes and procedures are employed to ensure that every step meets quality standards. In the finished product testing phase, comprehensive performance testing and inspection are conducted to ensure the product meets design specifications.
Furthermore, Tianmiao provides customized design services to meet the diverse needs of its clients. During equipment installation and operation and maintenance, professional technicians are dispatched to provide on-site guidance and service, ensuring the equipment operates normally and resolving any issues promptly.
Cryogenic liquid helium storage tank Parameter table
Item | Parameter |
Equipment Name | Ultra-Large Cryogenic Liquid Helium Storage Tank |
Equipment Specification | Diameter 4.5m × Length 10m |
Design Temperature | -269℃ (4.2K) |
Applicable Medium | High-Purity Liquid Helium (≥99.9999%) |
Insulation Structure | Double-Layer Vacuum Insulation + Multi-Layer Composite Insulation |
Heat Loss Rate | ≤0.03W/L |
Working Pressure | 0.1–0.5MPa (Micro Positive Pressure) |
Equipment Category | Category III Pressure Vessel |
Inspection Requirement | 100% Radiographic Inspection of Welds + Helium Mass Spectrometer Leak Detection |
Monitoring Configuration | Real-Time Temperature/Pressure Monitoring, Remote Diagnosis, Abnormal Alarm |
