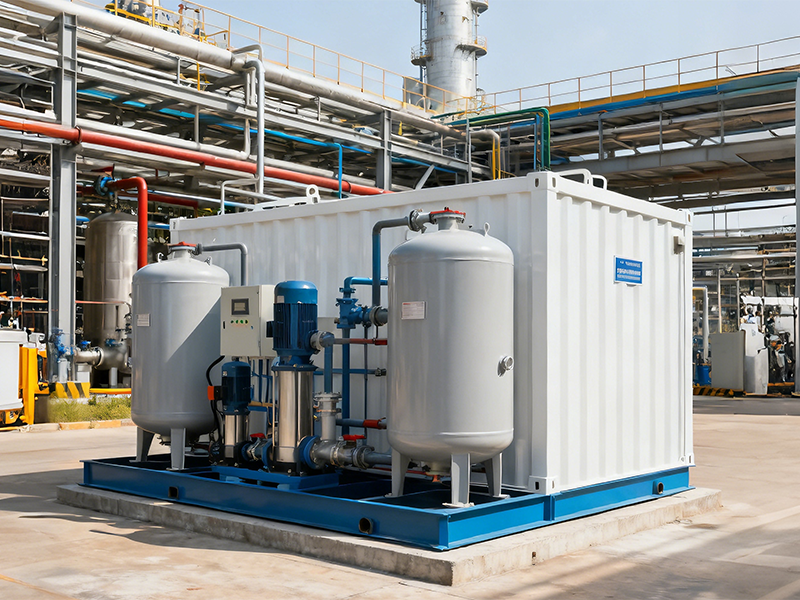

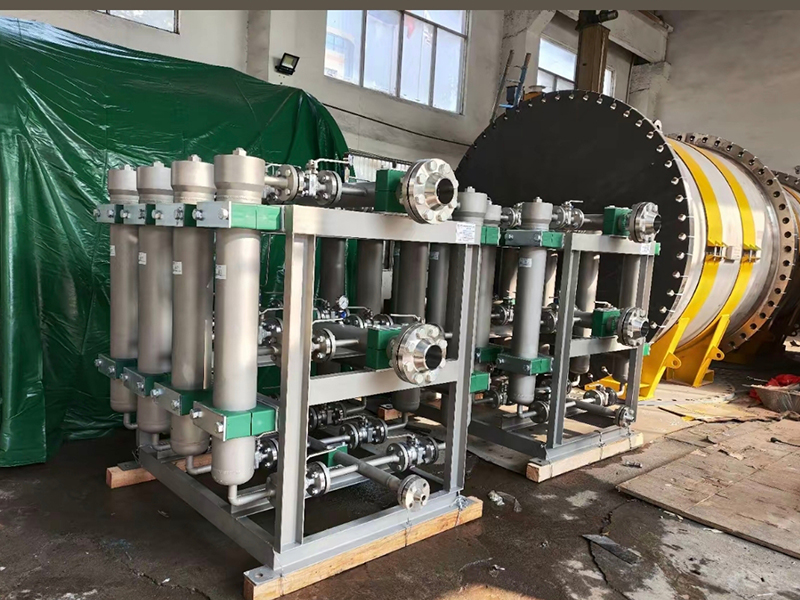

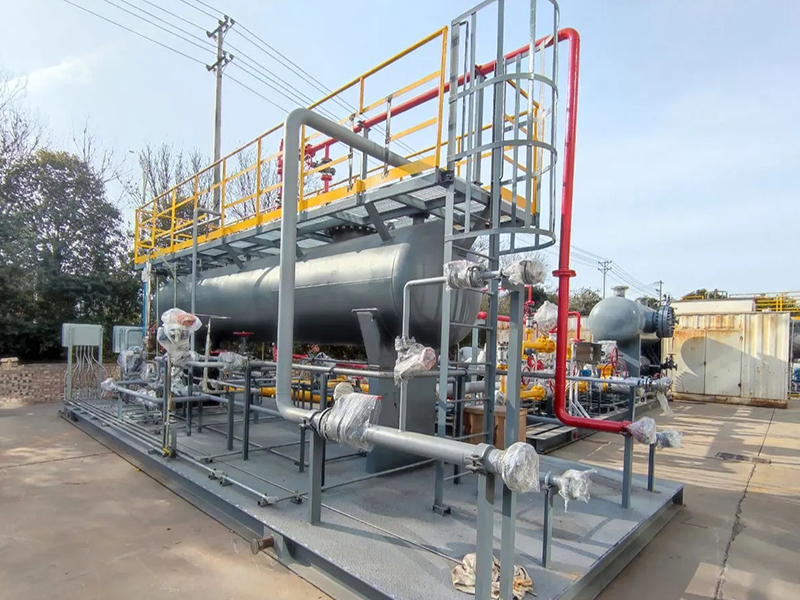

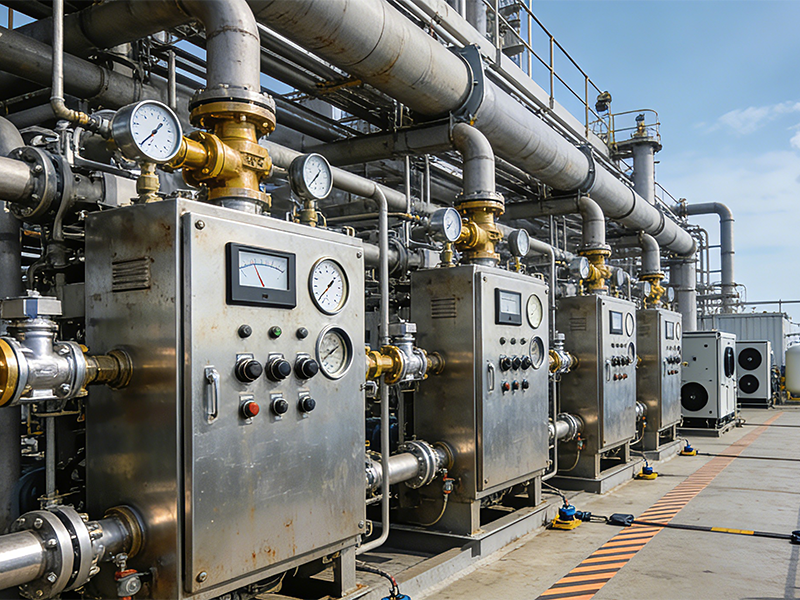

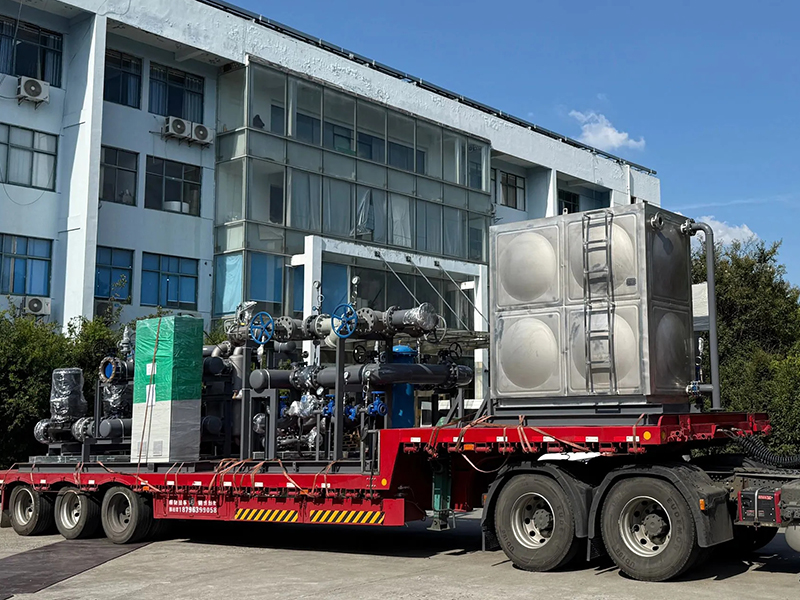

Chemical injection skid
Tianmiao Chemical injection skid, precision integration, stable and reliable. Modular design for rapid deployment, corrosion-resistant materials adapted to harsh working conditions, providing continuous and stable chemical protection for your process system. Customized solutions to ensure process safety and efficiency.
Get a quote now for your personalized plan
We are a company specializing in the fields of energy, chemical industry, environmental protection, and water treatment. With excellent technology and equipment quality, we have become a trusted partner of many customers.
We adhere to the principles of “precision, reliability, and durability” to customize modular chemical injection devices for customers, helping to achieve precise process control, safe operation, and efficient resource utilization.
Our systems comply with international and domestic standards, equipped with high-precision sensors and intelligent control systems, which can monitor and automatically adjust flow rate, pressure, liquid level, and proportion in real-time with high control accuracy and small errors. They also support remote monitoring, automatic alarm, and batch control to ensure stable and consistent operation every time.
All core components are made of corrosion-resistant materials such as stainless steel and duplex steel according to the characteristics of the medium, adapting to various flow rates and pressures, and having a wide temperature resistance range.
The equipment adopts automatic welding and precision assembly, with a smooth interior and good sealing performance, making it more durable. The modular design ensures small floor space, quick installation, and flexible adjustment and expansion. Different functions can be customized according to your specific needs, such as pump configuration and control methods, saving installation time and costs.
If you have relevant needs, we are willing to provide you with tailor-made solutions and full-process technical support according to your specific situation. Welcome to contact us at any time.
Product Parameters Overview
Parameter Category | Parameter Name | Specification Description |
Basic Parameters | Model | CIU-X (Custom Code) |
Overall Dimension (L×W×H, mm) | 3000×2000×2850 (Standard/Customizable) | |
Applicable Medium | Corrosion Inhibitor, Scale Inhibitor, Methanol, etc. | |
Applicable Ambient Temperature | -40℃~85℃ | |
Core Parameters | Injection Pump Type | Plunger Pump/Hydraulic Diaphragm Pump (API 675) |
Rated Flow Rate | 1~15 L/min (Customizable) | |
Maximum Working Pressure | 10~69 MPa (High-Pressure Customizable) | |
Tank Volume | 0.5~20 m³ (Commonly 2 m³) | |
Control & Safety | Explosion-Proof Rating | ExdIIBT4 |
Control Mode | Manual/Auto (PLC+Touch Screen) | |
Safety Protection | Overpressure, Low Liquid Level, Pump Fault Alarm | |
Material
| Main Body Material | Carbon Steel Lined with Rubber/304/316 Stainless Steel |
Pipeline Material | 316 Stainless Steel Seamless Pipe |
